Spiral Classifying Equipment

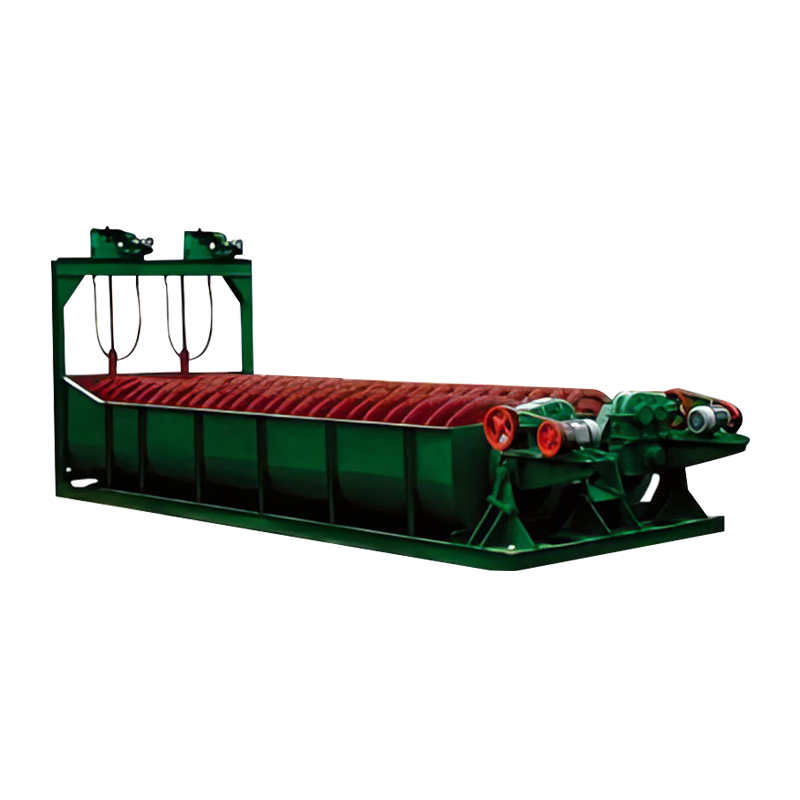

The major components of Spiral Classifying Equipment include semicircular groove, spiral device composed of the shaft and the blade, upper and lower shafts of spiral shaft bearing, bearing, driving equipment and lifting mechanism of spiral. Its specification is represented by spiral diameter.

Contact Us

Details

Spiral Classifying Equipment Description

The Spiral Classifying Equipment can be divided into single and double spiral classifying equipment according to the number of spiral shafts. It can also be divided into three types of high weir type, low weir type and submerged type according to the weir height.

Overflow weir of high weir Spiral Classifying Equipment is positioned above the lower end of the spiral shaft center, but lower than the upper edge of the overflow end of spiral. It has a certain settlement area suitable for coarse particle, which can obtain an overflow particle size of more than 100 meshes.

Overflow weir of low weir type spiral classifying equipment is below the center of the overflow end bearing. Therefore, the settling zone area is small and the overflow production capacity is low. It usually needs no classifying work and is used to wash the ore from soil.

The whole spiral at the overflow end of the submerged spiral classifying equipment is submerged in a settling zone under the liquid level. The settlement area has a larger area and depth. It is suitable for fine grading and can obtain the overflow particle size of less than 100 meshes.

Working Principle

Finely ground slurry enters the inlet tank from the material inlet located in the middle of the settling zone. The lower end of the inclined installed water tank is the sedimentation zone of slurry classification. The spiral rotates with a low speed and stirs the slurry. It makes the fine particles suspend above and flow to the overflow side weir. It enters the next process, and the coarse particles settle to the bottom of the tank and are conveyed to the discharging port by the spiral to be discharged as returning sand. Usually spiral classifying equipment and mill compose a closed circuit and returns the coarse sand to the mill for regrinding.

The advantages of spiral classifying equipment are simple structure, stable and reliable work and convenient operation, which makes it easy to form a closed circuit operation with the mill of which the diameter is less than 3.2 m.

Main Technical Parameters



Type



Type

Spiral diameter(mm)

Spiral rotation speed

(r/min)

Water tank

Production capacity

Motor

Enhancing motor

Weight (Kg)

Length

(mm)

Width

(mm)



Inclination angle



Overflow amount



Returning sand amount

Type

Power

(kw)



Type



Power

(kw)

Spiral diameter

Weight



mm









t/24h









kg

High weir type

Single spiral

FG-10

Ф1000

3.5-7.6

6500

1112

14-10.5

85

473-1026

Y132M2-6

5.5

Manual



4400

FG-12

Ф1200

6.0

6500

1372

14-10.5

155

1170-1600

Y132M2-6

5.5

Y90L-4

1.5

8800

FG-15

Ф1500

2.5-6.0

8230

1664

14-18.5

235

1140-2740

Y160M-6

7.5

Y100L1-4

2.2

11680

FG-20

Ф2000

3.6-5.5

8400

2200

14-18.5

400

3890-5940

Y160L-6/4

11/15

Y100L2-4

3.0

20450

FG-24

Ф2400

3.64

91300

2600

14-18.5

580

6800

Y160L-4

15

Y100L2-4

3.0

25650

Double spiral

2FG-12

Ф1200

6.0

6500

2600

14-18.5

310

2340-3200

Y132M2-6

5.5×2

Y90L-4

1.5×2

15840

2FG-15

Ф1500

2.5-6.0

8230

3200

14-18.5

470

2280-5480

Y160M-6

7.5×2

Y100L1-4

2.2×2

22100

2FG-20

Ф2000

3.6-5.5

8400

4280

14-18.5

800

7780-11880

Y200L2-6
Y200L- 4

22×2
30×2

Y100L2-4

3×2

36400

2FG-24

Ф2400

2.5-5.2

9130

5100

14-18.5

1160

9140-18500

Y200L-4

30×2

Y100L2-4

3×2

45874

2FG-30

Ф3000

3.17

12500

6300

14-18.5

1785

14600-23400

Y225M-4

45

Y112M-4

4×2

73480

submerged type

Single spiral

FC-10

Ф1000

6.0-7.4

8400

1112

14-10.5

75

473-1026

Y132M2-6

5.5

Manual



6000

FC-12

Ф1200

5.0-7.0

8400

1372

14-18.5

120

1170-1630

Y160M-6

7.5

Y100L1-4

2.2

11020

FC-15

Ф1500

2.5-6.0

10500

1664

14-18.5

185

1140-2740

Y160M-6

7.5

Y100L1-4

2.2

15340

FC-20

Ф2000

3.6-5.5

12900

2200

14-18.5

320

3890-5940

Y160L6/4

11/15

Y100L2-4

3.0

29060

FC-24

Ф2400

3.64

14130

2600

14-18.5

455

6800

Y180M-4

18.5

Y112M-4

4.0

37267

Double sipral

2FC-12

Ф1200

6.0

8400

2600

14-18.5

240

1770-2800

Y160M-6

7.5×2

Y90L-4

1.5×2

19610

2FC-15

Ф1500

2.5-6.0

10500

3200

14-18.5

370

2280-5480

Y160M-6

7.5×2

Y100L2-4

2.2×2

27450

2FC-20

Ф2000

3.6-5.5

12900

4280

14-18.5

640

7780-11880

Y200L2-6
Y200L- 4

22×2
30×2

Y100L2-4

3×2

50000

2FC-24

Ф2400

2.5-5.2

14130

5100

14-18.5

910

13700

Y200L-4

30×2

Y100L2-4

3×2

53491

2FC-30

Ф3000

3.2

14300

6300

14-18.5

1410

23300

Y225M-4

45×2

Y112M-4

4×2

84870
